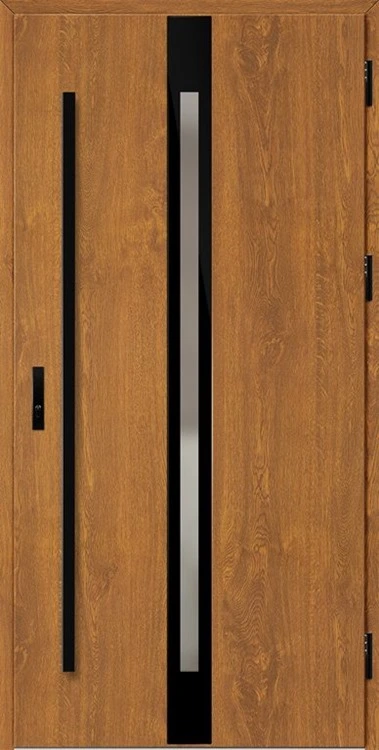

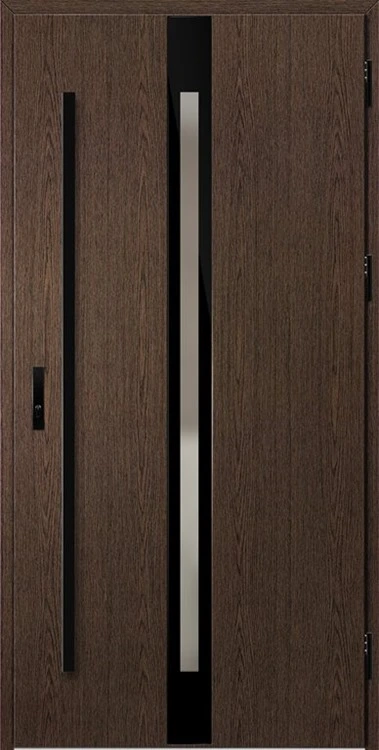

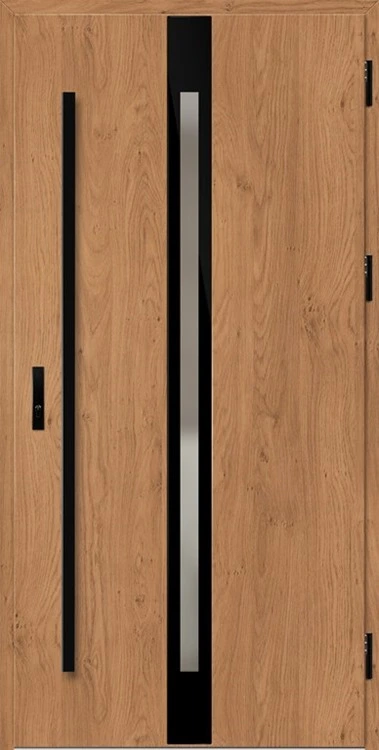

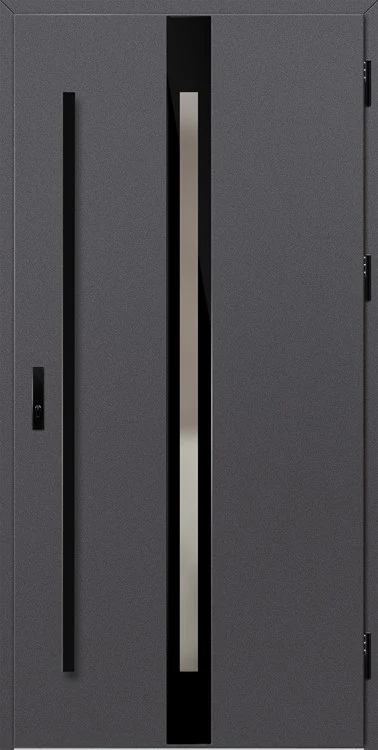

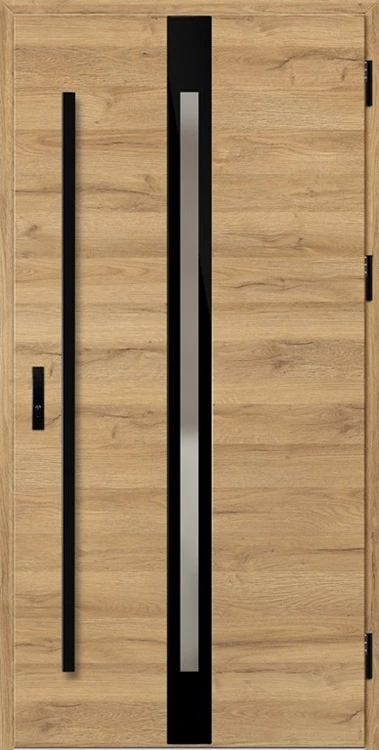

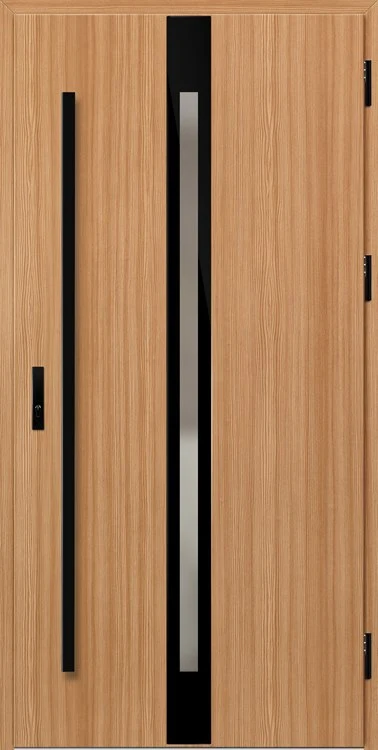

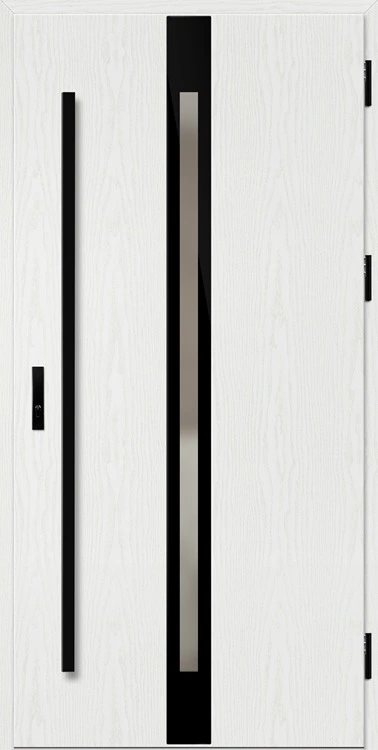

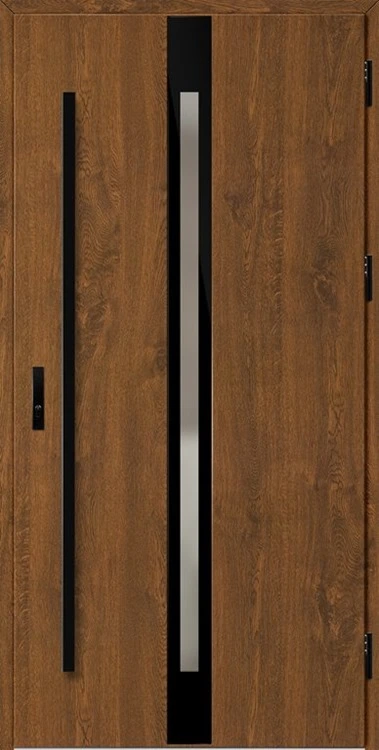

HORN 2

Product description

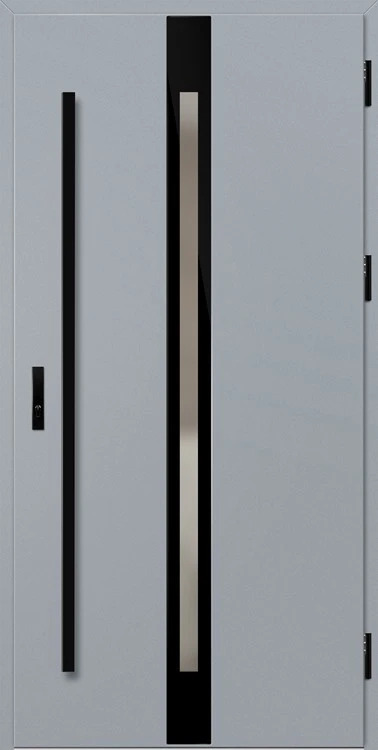

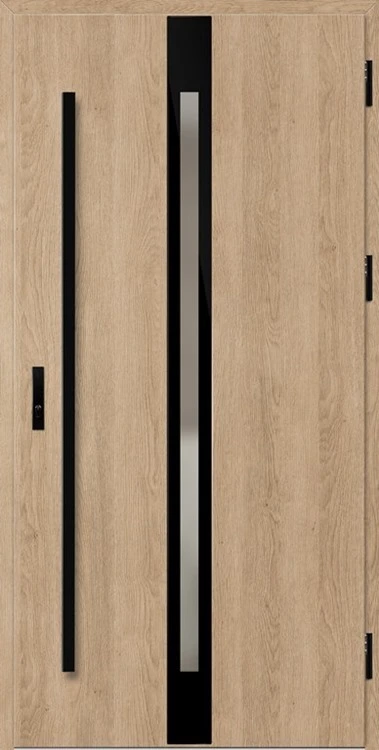

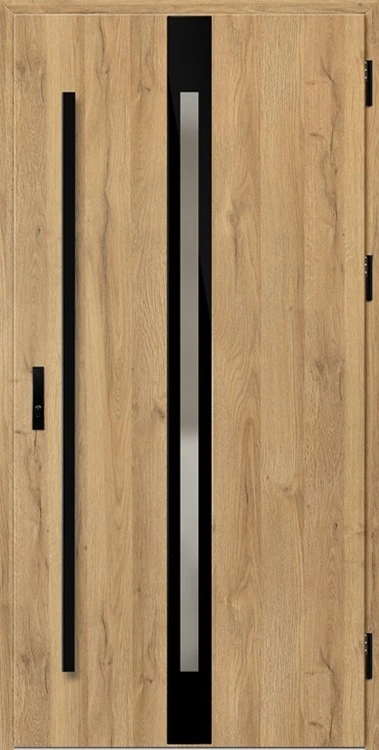

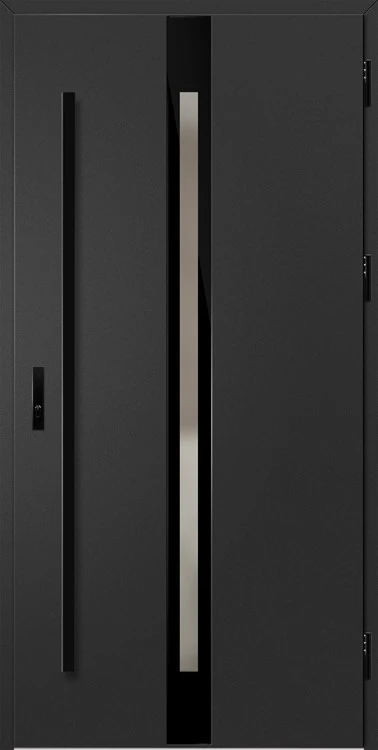

Entrance doors made of steel sheet, protected by PVC laminate, which is characterized by high resistance to changing weather conditions, UV radiation and mechanical damage. The texture matching the decorative motif creates a product with high aesthetic value. You can choose from four types of structures:

• THERMO HOT 88 – thermal insulation: Ud=0.60 W/(m²K), sash thickness: 88 mm
• THERMO HOT 78 – thermal insulation: Ud=0.63 W/(m²K), sash thickness: 78 mm
• THERMO 78 – thermal insulation: Ud=0.64 W/(m²K), sash thickness: 78 mm
• THERMO 64 – thermal insulation: Ud=0.77 W/(m²K), sash thickness: 64 mm

Surface design options:

PLAIN GLASS – decorative glass insert that fits flush with the leaf on the rebated side. For doors that open outwards or inwards, the glass is always flush with the outside of the house, while on the inside there is a decorative stainless steel panel painted black.

PLAIN LACOBEL GLASS – a flat panel made of black lacquered glass.

The exception is the inward-opening door with THERMO HOT technology, where this solution is not possible due to the double rebate. This automatically means that the product cannot be ordered in this configuration (inward-opening door with THERMO HOT technology). All models have a burglary resistance class of RC2 and also meet the requirements of the “Clean Air” program.

Product information

DESIGN

• Door leaf filled with PUR (polyurethane foam)
• Cover made of 0.6 mm thick galvanized steel sheet, coated with UV-resistant PVC laminate
• laminated pine frame
• 3D adjustable, three-stage hinge
• thermally insulated decorative grille, which provides an aesthetic appearance and guarantees high thermal insulation
• aluminum warm threshold
• automatic threshold seal (optional, at extra cost), which provides additional insulation at the threshold area
• rebated threshold (so-called fourth rebate), which significantly improves the tightness of the door along the entire perimeter
• aluminum strap covers in black, silver or antique gold (standard equipment)
• aluminum or steel case

BASIC EQUIPMENT

PUR foam-filled, four-sided rebated door leaf, with laminated wood frame, equipped with:

• 3 pcs 3D adjustable straps and strap covers
• 4 safety pins
• Main lock with 3-point locking system
• thermal insulation blanket panels
• aluminum door frame painted black and laminated in the same color as the leaf, with warm aluminum threshold and fully adjustable lock plate for doors made with THERMO HOT technology
• galvanized steel frame, laminated in the same color as the leaf, with warm aluminum threshold for doors made with THERMO technology
• four-layer glazing, with tempered ESG glass on the outside, with black spacers in the glass units

DOOR DIMENSIONS

Custom sizes, including case:

• width: 770 mm – 1210 mm, in 10 mm steps
• height: 1800 mm – 2480 mm, in 10 mm steps
