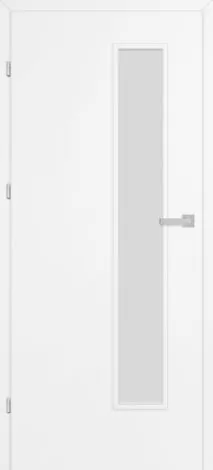

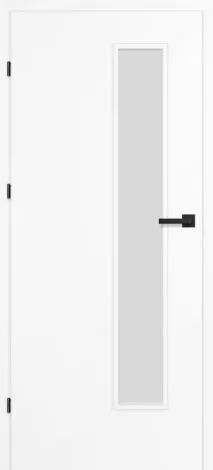

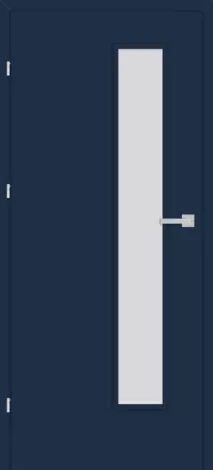

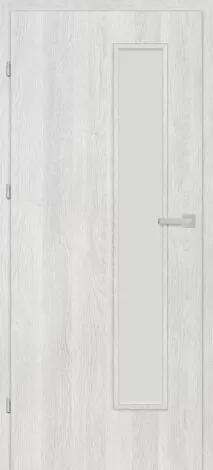

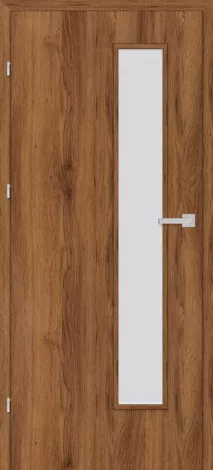

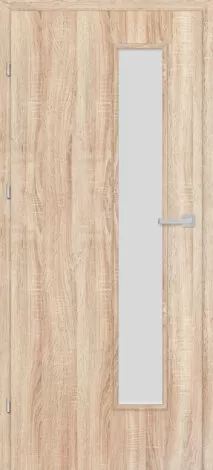

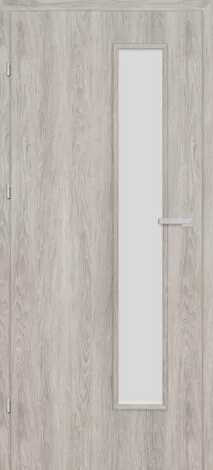

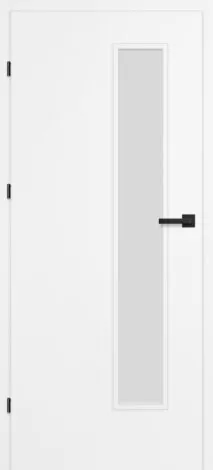

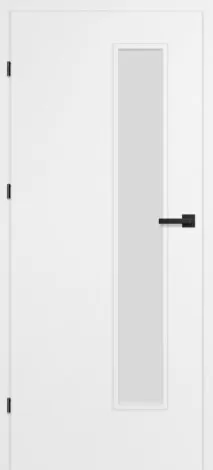

ALTAMURA 5

STRUCTURE
• rebated, inverted or non-rebated door leaf
• inner MDF frame covered with two HDF sheets
• optional, at extra cost, inner wooden frame (sides and top, bottom MDF), covered with two HDF sheets
• stabilizing filling is “honeycomb grid” or at extra cost full
sheet
• optional, at extra cost door frame widening panels, as well as crown molding and
pilasters p. 151-153.
• the door leaf can be shortened independently, details on p. 149.

DESIGN
• HDF board covered with foil
• Door leaf edge made with STANDARD technology
• CPL 0.2 and 0.7 laminates are available only for the STANDARD edge, which is only
glued with an ABS edge matching the leaf color, or for an additional charge
standard black side panel
• edge (standard or rebateless) matching the door leaf plane or optionally
glued with a smooth black edge (NATURAL CROSS-GRILLED OAK PREMIUM
in the case of foil, a cross-grained black edge)
• double-sided inserts listed on pages 96-103 are available for an additional charge
(marquetry) for ALTAMURA 1

HARDWARE
• three roll-up pin hinges in the rebated door leaf
• three concealed hinges in the non-rebated door leaf and two silver-coloured (optionally available
for an additional charge
black or gold) hinges in the reversed door leaf; the hinges are delivered and priced together with the door frame
• deadbolt lock in the rebated door leaf, magnetic lock in the non-rebated door leaf (optionally
deadbolt lock): with key lock, lock insert, secondary lock or bathroom lock mechanism
in silver; optionally available with black or gold magnetic lock for an additional charge
• magnetic lock in the reversed door leaf: with key lock, lock insert, secondary lock or
with bathroom lock mechanism in silver; optionally available with black or
gold magnetic lock for an additional charge

GLAZING
• fully tempered decormat frosted glass as standard, clear or at an additional cost on both sides
smooth VSG 221 safety frosted glass
• the glazing can be reversed to REWERS type (standard glazing: AWERS)

EXTRAS AT A CHARGE
reversed door leaf (not available for CPL 0.2 and 0.7)
full panel filling
panel reinforcement under the self-closing
lever door closer (silver, black, white, brown)
additional lower crossbar
(can be shortened by yourself up to max. 8 cm)
recuperation gap standard or mini, ventilation undercut standard or mini (p. 149)
or ventilation grille
round or square metal vents (4 pcs) surface: brushed nickel, patina,
white or black
plastic vents
rebated and non-rebated door leaf in size „110”
rebated and non-rebated door leaf in size „110” door leaf
glued VSG 221 frosted glass
automatic threshold 2)
metal hinge cover in the rebated door leaf (brushed nickel, patina, polished
chrome, polished brass, white and black);
stainless steel round window available in the ALTAMURA 1 model: polished “chrome” or
brushed
satin and black matt; decormat frosted glass, clear glass, round window inner dia.: 235 mm, outer dia.: 350 mm)
stainless steel panel (fixing on both sides, only for STANDARD rebated door leaf), 300 mm high.
– bottom Altamura 1, 3, 4, 6, 8
– middle Altamura 1, 4
– bottom ventilation Altamura 1, 3, 4, 6, 8
door leaf edge design black
replacement for black magnetic lock for non-rebated and reversed door leaves
replacement of lock for black lock for rebated door leaf 8).
replacement of hinges for black hinges for rebated door leaf 8).
replacement for black or gold hinges and strike plate for non-rebated door leaf
magnetic limiter (stop) 2)
(available in six colors p. 149)
internal wooden frame (side and top, bottom MDF)
in the ALTAMURA 1 model LUX inlay; available versions p. 96-103
PL2112 standard +15% to the price of the sash before surcharge
